Specification
|
Parameter
|
|
| DC Parameter | ||
|
Cell type
|
LFP 280Ah
|
|
|
Module type
|
BBS-BAT166280B12-V4
|
|
|
Combination mode
|
1P52S
|
|
|
Nominal voltage (V)
|
166.4V
|
|
|
Rated capacity (Ah)
|
280Ah
|
|
|
Nominal energy (kWh
|
46.592kWh
|
|
|
Standard charging current
|
0.5P/1P
|
|
|
Standard discharge current
|
0.5P/1P
|
|
| Cooling Mode |
Coolant heat dissipation
|
|
|
Operating voltage (V)
|
145.6~187.2V
|
|
|

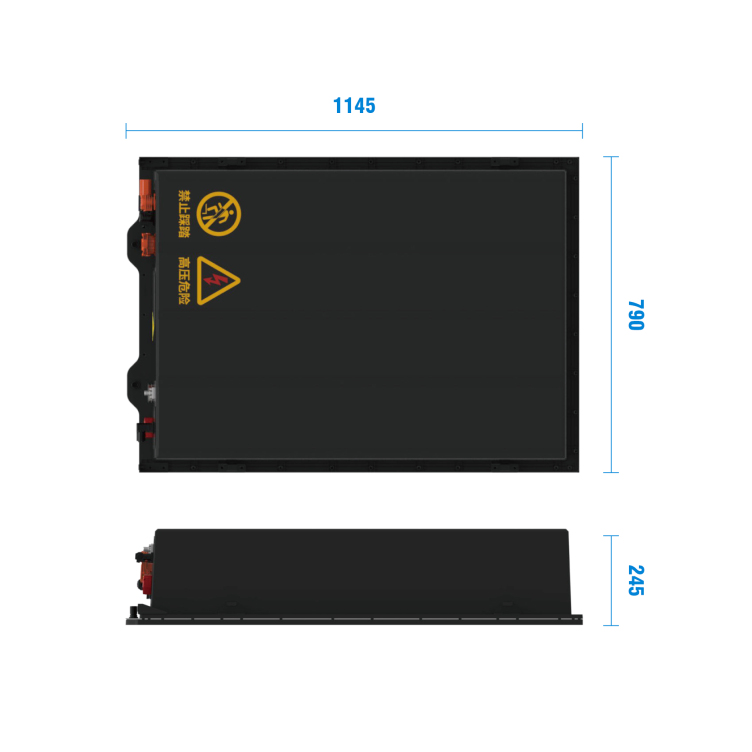

Size (Width * Depth * Height mm)
|
790*1145*245
|
|
| Certification Standard | IEC62619、EN62477-1、IEC 63056 | |
